Licensed digital DMR

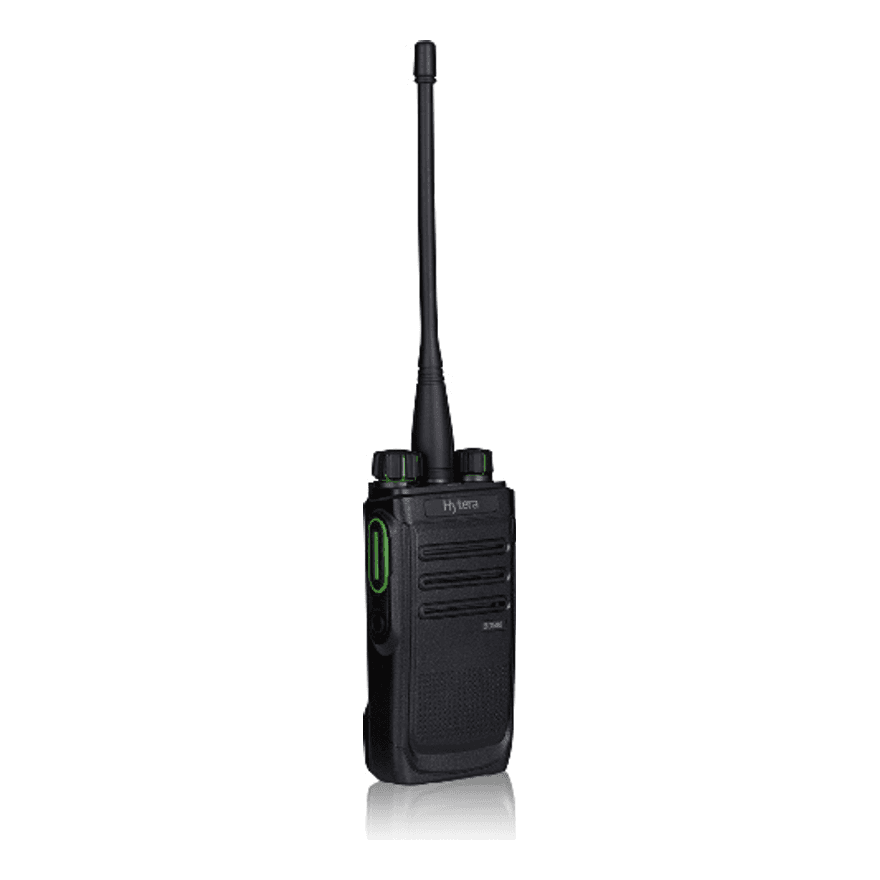

Hytera BD505
Hytera's entry-level digital handheld. Small, light and simple.
The BD505 is Hytera's business-tier DMR radio and one of the most common radios in UK hire fleets. It is small and light, has a 16-position knob and no screen, and runs 16 to 22 hours on a battery. It shares its 2-pin accessories with the PD405, which keeps earpieces cheap. A sensible choice for shops, hotels, schools and small events.
Licensing
Licensed business radio. Covered by our supplier licence for hire. We arrange your own licence for lease or purchase.
How licensing worksFeatures
- Group, private and all-call
- One-touch call and pre-programmed text from a key
- Dual-slot direct mode
- Scan and VOX
- Digital noise cancelling
- Mixed analogue and digital receive
Specification
BD505 technical specification
| Band | UHF 400–470 MHz (VHF 136–174 MHz available) |
|---|---|
| Channels | 48 channels, 3 zones, 16-position knob |
| RF power | 4 W / 1 W UHF (5 W / 1 W VHF) |
| Digital standard | DMR Tier II + analogue FM |
| Battery | Li-ion 1500 mAh (2000 mAh option) |
| Battery life | 12 h analogue / 16 h digital with 1500 mAh; 16 h / 22 h with 2000 mAh |
| Ingress protection | IP54 |
| Durability | MIL-STD-810G |
| Weight | Approx. 240 g |
| Size | 108.6 × 54.5 × 32 mm |
| Display | None. LED and two programmable keys |
| Accessory connector | Hytera 2-pin (shared with PD405) |
Specifications are typical for the model class and may vary by production batch. Range figures depend on terrain and buildings. A full datasheet and Declaration of Conformity are available on request.
Accessories
Accessories for the BD505
Accessories
Hytera EHM15-A D-style earpiece
Hytera's own D-style earpiece for the BD505 and PD405.
- Hytera 2-pin
- D-style ear hook
- In-line PTT and mic, VOX supported
Accessories
Hytera ACM-01 + ES-02 acoustic tube kit
Covert-style acoustic tube earpiece for the BD505 and PD405.
- Hytera 2-pin
- PTT/mic unit with acoustic tube earpiece
- ACM-01, IP54, about 35 g, 3.5 mm socket, clothing clip
Accessories
Hytera SM26M1 speaker microphone
IP54 shoulder speaker mic for the BD505 and PD405.
- Hytera 2-pin
- IP54
- 2 W rated, 3 W max
Accessories
Hytera MCL19 6-way charger
Charges six BD505 radios or batteries from one socket.
- 6 bays
- 0.8 A per bay
- 12 V DC, 7 A, UK mains adapter
Where the BD505 is used
- Retail, Shopwatch and PubwatchTwo-way radios for retail, Shopwatch and Pubwatch
- Hotels and hospitalityTwo-way radios for hotels and hospitality
- Schools, colleges and universitiesTwo-way radios for schools, colleges and universities
- Charities and community eventsFree two-way radio hire for charities and community events
Also in this category
Licensed digital DMR
Fellwave FW-400
Our standard hire radio. Licensed 5 W UHF digital, no screen, USB-C charging.
- UHF 400–470 MHz
- 256 channels in 16 zones, 16-position rotary knob
- Up to 5 W high / 2 W low
Licensed digital DMR
Fellwave FW-600
Our display radio. Dual band, colour screen, full keypad, for the people running the job.
- VHF 136–174 MHz and UHF 400–480 MHz in one radio
- 3,000 channels, 10,000 talkgroups, 120,000 contacts
- Up to 5 W
Licensed digital DMR
Hytera PD405
The Hytera hire staple. IP55, lone worker, emergency, 22-hour battery.
- UHF 400–470 MHz (VHF 136–174 MHz available)
- 48 channels, 3 zones, 16-position knob
- 4 W / 1 W UHF (5 W / 1 W VHF)
Enquire
Ask about the BD505. Hire, lease or buy.
How many radios, the dates, where you are and what the job is. That is enough for us to put a kit list together.
- Email[email protected]
- Monday to Friday, 08:00–18:00. Out-of-hours support for live events by arrangement.
Want a rough price first?
Tell the quote calculator how many radios and for how long, and it shows an estimate straight away.
Get a price in 20 seconds
