Licensed digital DMR

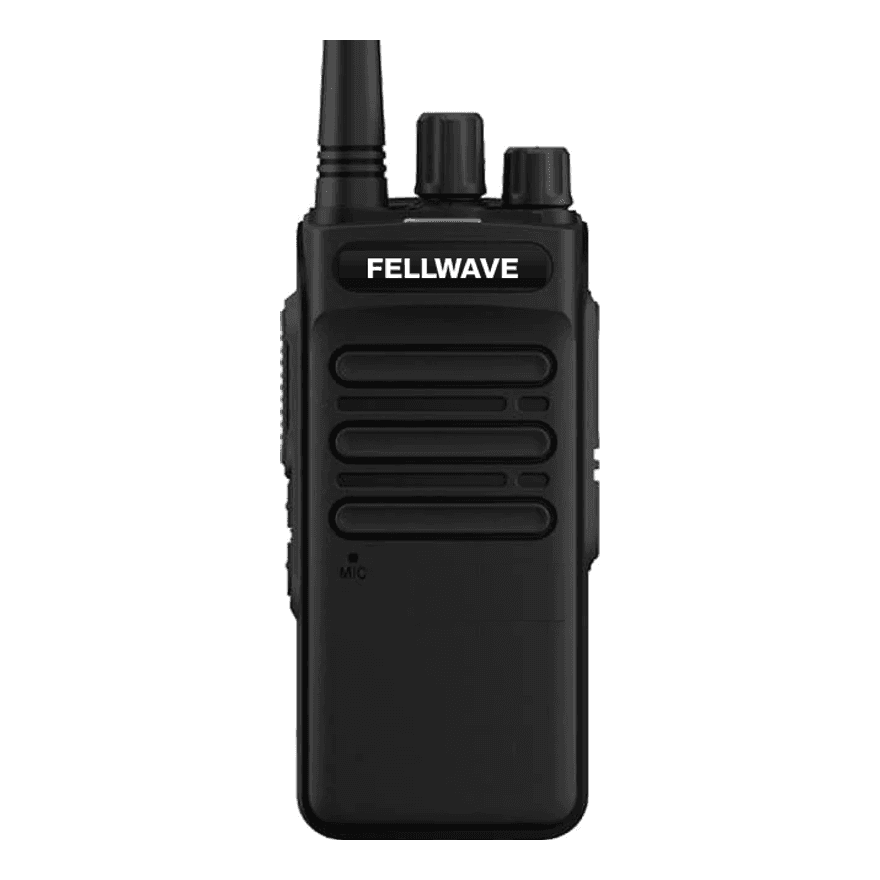

Fellwave FW-400
Our standard hire radio. Licensed 5 W UHF digital, no screen, USB-C charging.
The FW-400 is the radio we send out most. It is a licensed UHF DMR handheld with a 16-position channel knob and no screen, so there is nothing for a new user to get lost in. It runs digital and analogue on 256 channels, has a 2600 mAh battery that charges from USB-C as well as the drop-in charger, and uses the common 2-pin accessory connector so earpieces are cheap and easy to replace. It goes out programmed, charged and licensed.
Licensing
Licensed business radio. For hire it is covered by our Ofcom supplier licence. For lease or purchase we arrange your own licence.
How licensing worksFeatures
- Group, private and all-call
- Emergency alert
- Text messages between radios and from a dispatcher
- Voice encryption on digital channels
- VOX hands-free with a headset
- Scan lists and receive groups
- Two programmable side keys
- Compatible with Motorola, Hytera and other DMR Tier II radios
- Programmed to your groups before dispatch
Specification
FW-400 technical specification
| Band | UHF 400–470 MHz |
|---|---|
| Channels | 256 channels in 16 zones, 16-position rotary knob |
| RF power | Up to 5 W high / 2 W low |
| Digital standard | DMR Tier II, ETSI TS 102 361-1/2/3, DVSI AMBE+2 vocoder, two time slots |
| Analogue | FM 12.5/25 kHz, CTCSS/DCS |
| Contacts and lists | 200 contacts, 32 receive group lists, 32 scan lists |
| Battery | Li-ion 7.4 V 2600 mAh, removable; charges on the radio by USB-C or in a drop-in charger |
| Battery life | A full working day on a charge (measured figure to follow) |
| Ingress protection | Splash and dust resistant (rating to be confirmed on our own units) |
| Weight | 289 g with battery and antenna |
| Size | 139 × 60 × 41 mm with battery |
| Display | None. LED status indicator |
| Audio output | 1 W |
| Receiver sensitivity | −120 dBm digital (5% BER); −122 dBm analogue (12 dB SINAD) |
| Frequency stability | ±2.5 ppm |
| Operating temperature | −10 °C to +55 °C |
| Accessory connector | 2-pin (Kenwood style) |
Specifications are typical for the model class and may vary by production batch. Range figures depend on terrain and buildings. A full datasheet and Declaration of Conformity are available on request.
Accessories
Accessories for the FW-400
Accessories
Fellwave FW-EP1 D-shape earpiece
The D-shape earpiece that comes in our hire packs. 2-pin plug for the FW-400 and FW-600.
- Kenwood-style 2-pin
- D-shape soft ear hook
- In-line PTT with built-in mic
Accessories
Fellwave FW-SM1 speaker microphone
A shoulder speaker mic for the FW-400 and FW-600, so the radio can stay on the belt.
- Kenwood-style 2-pin
- Remote speaker microphone
- Coiled PU lead
Where the FW-400 is used
- Events and festivalsTwo-way radio hire for events and festivals
- SecurityTwo-way radios for security teams
- Hotels and hospitalityTwo-way radios for hotels and hospitality
- Schools, colleges and universitiesTwo-way radios for schools, colleges and universities
- Retail, Shopwatch and PubwatchTwo-way radios for retail, Shopwatch and Pubwatch
- Stadiums and sports clubsTwo-way radios for stadiums and sports clubs
- Film and TV productionTwo-way radio hire for film and TV production
Also in this category
Licensed digital DMR
Fellwave FW-600
Our display radio. Dual band, colour screen, full keypad, for the people running the job.
- VHF 136–174 MHz and UHF 400–480 MHz in one radio
- 3,000 channels, 10,000 talkgroups, 120,000 contacts
- Up to 5 W
Licensed digital DMR
Hytera BD505
Hytera's entry-level digital handheld. Small, light and simple.
- UHF 400–470 MHz (VHF 136–174 MHz available)
- 48 channels, 3 zones, 16-position knob
- 4 W / 1 W UHF (5 W / 1 W VHF)
Licensed digital DMR
Hytera PD405
The Hytera hire staple. IP55, lone worker, emergency, 22-hour battery.
- UHF 400–470 MHz (VHF 136–174 MHz available)
- 48 channels, 3 zones, 16-position knob
- 4 W / 1 W UHF (5 W / 1 W VHF)
